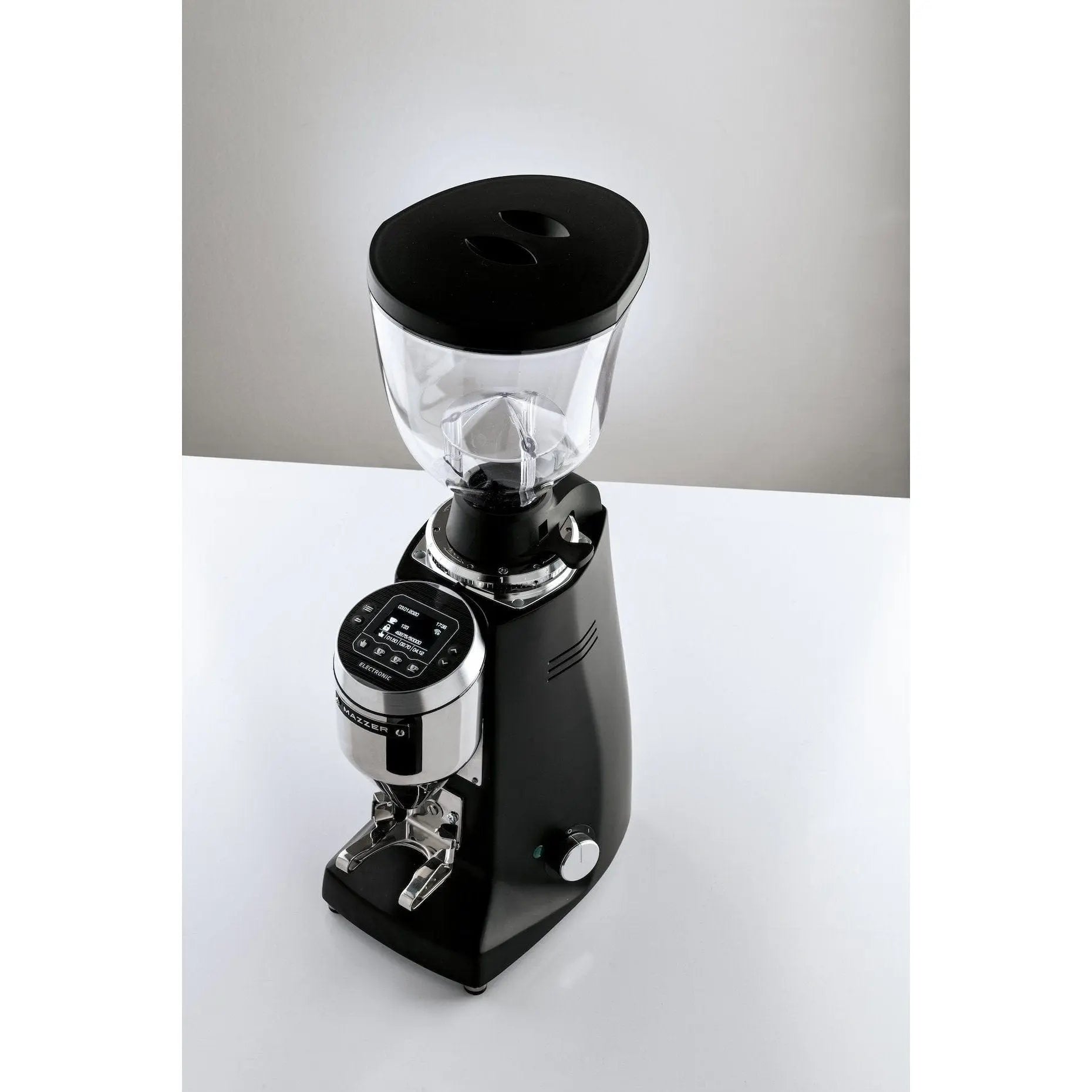

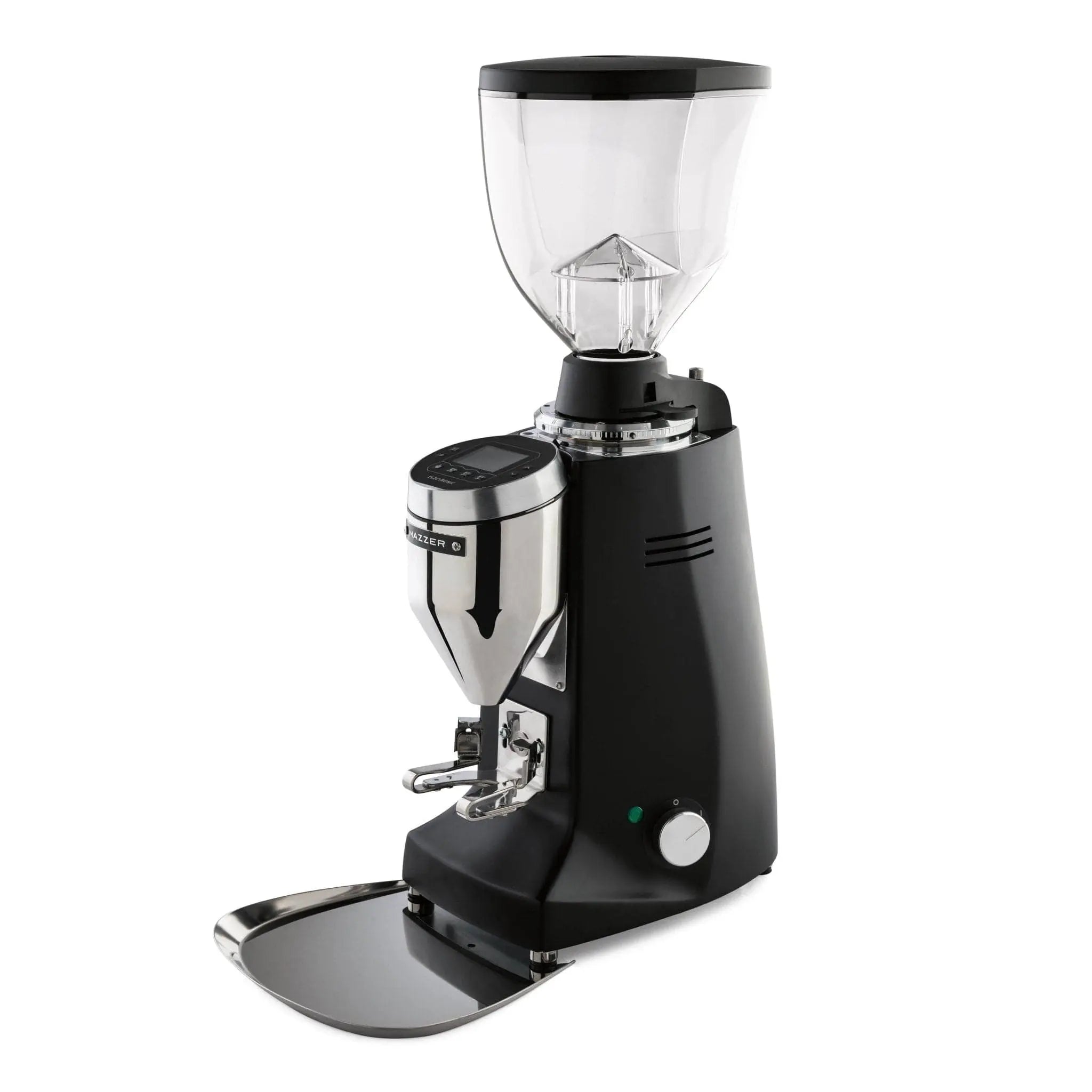

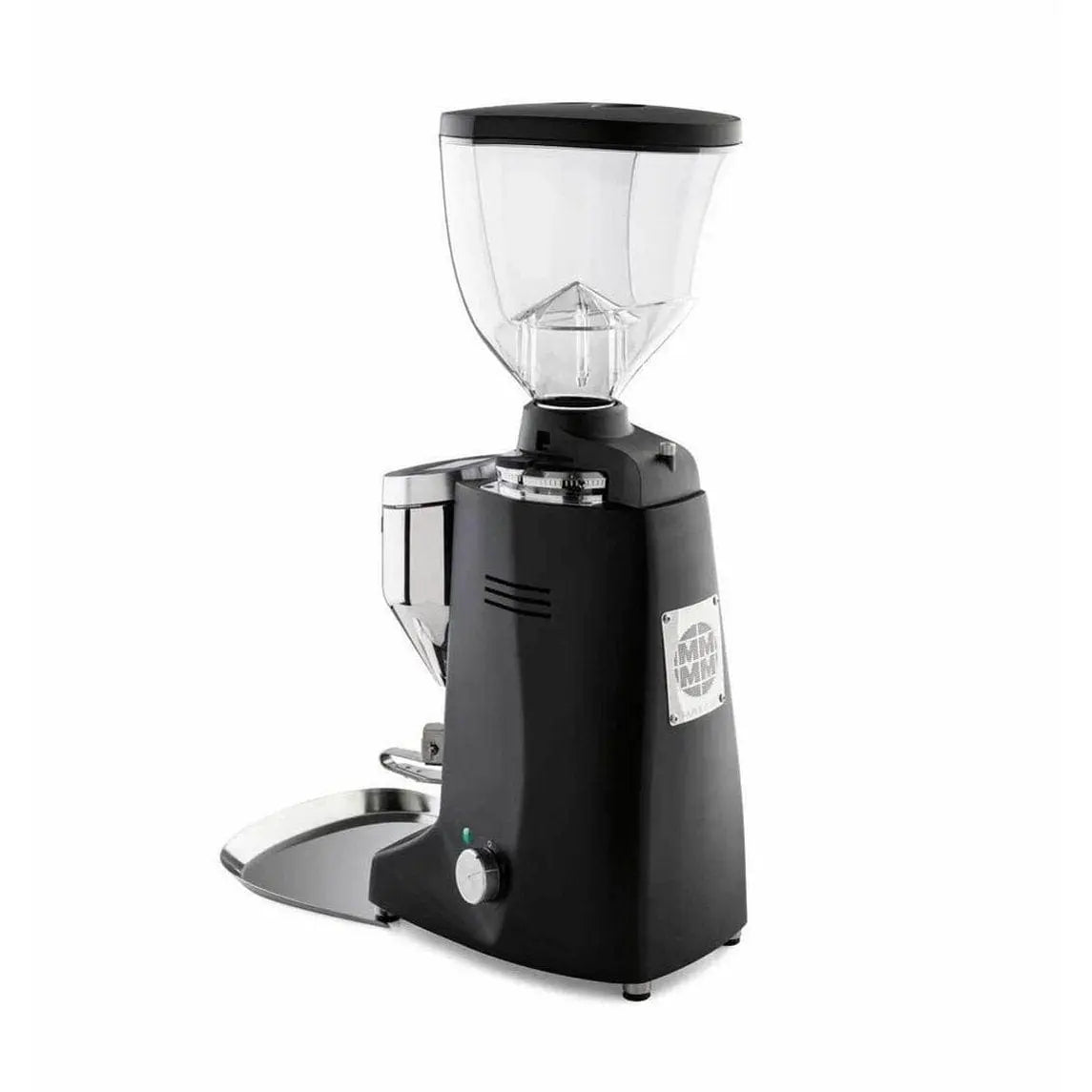

Mazzer Major V Electronic Commercial Espresso Grinder

• 83 mm flat steel burrs, the largest flat burr set Mazzer builds
• Programmable single, double and triple dose buttons, timed to a hundredth of a second
• Grinds a 17 gram dose in 4.7 seconds
• Electronically controlled ventilation protects the coffee from heat during continuous use
• Control panel readable in 19 languages across a viewing angle above 160 degrees
• Maximum dose cap can be set, so a dose cannot be overrun
• Total and partial dose counters, plus daily grinding statistics
• Alerts for worn burrs and for service due
• Programmable pause between grinds
• Manual grinding mode alongside the programmed doses
• Firmware upgradeable
• Stepless micrometrical grind adjustment with a memory track index

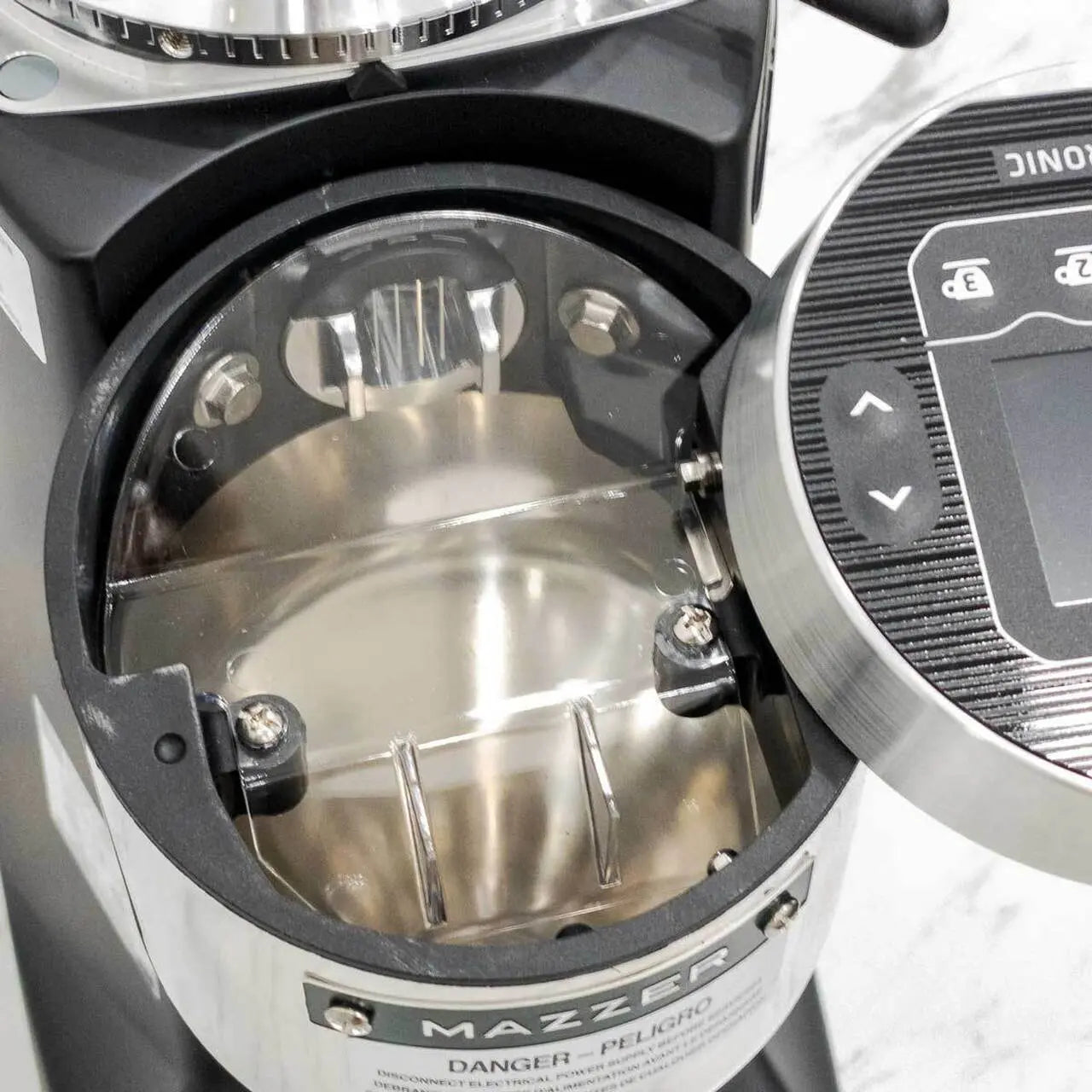

• Grinding chamber opens for cleaning without losing the grind setting
• Adjustable portafilter holder fork
• 3.5 lb hopper with locking collar and a wired safety switch
• 650 W motor on 120 V, 7.5 amp service recommended
• Available in Deep Black and Arctic White
• ETL Sanitation Listed to NSF-8 and ETL Listed to UL-763
• Made in Venice, Italy

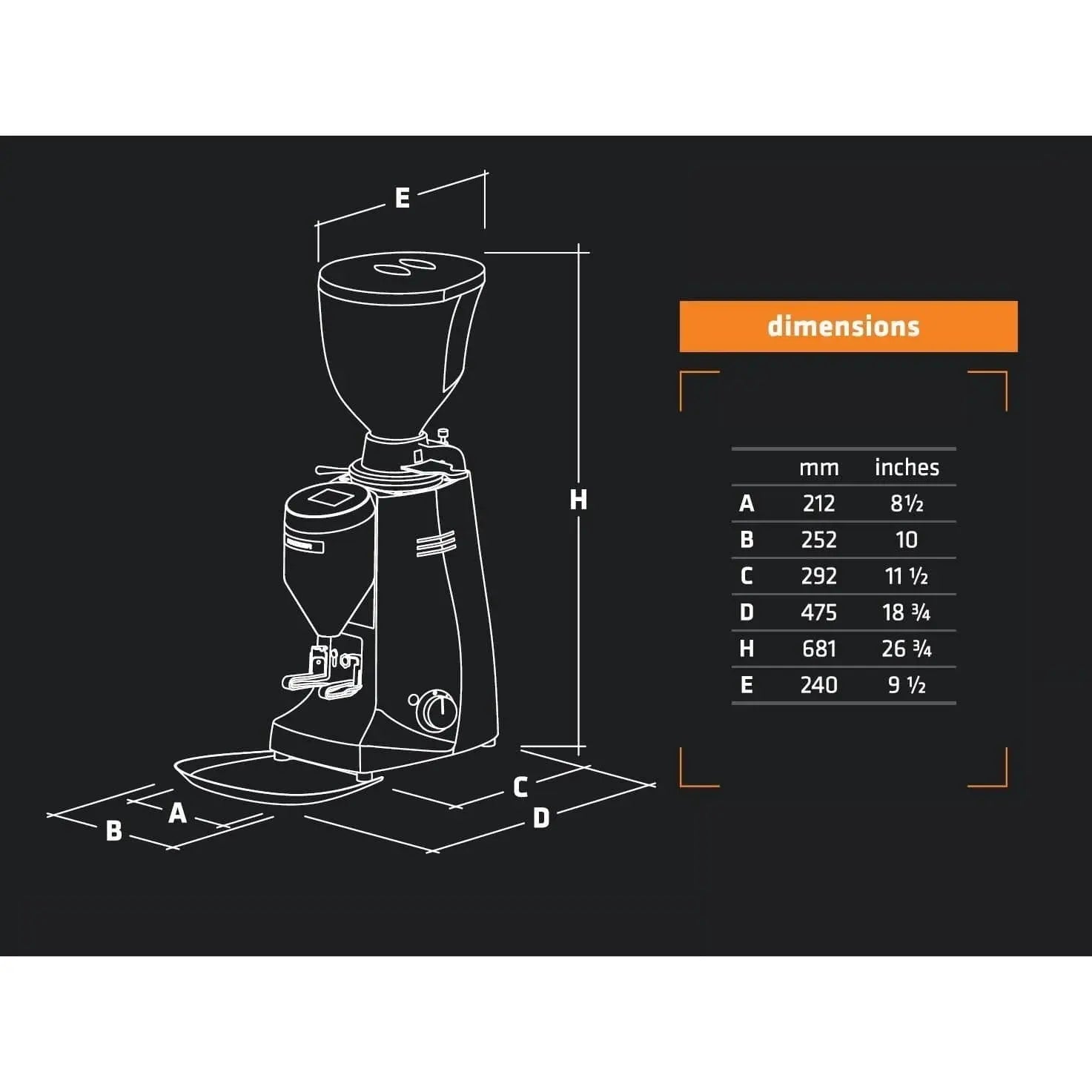

• Dimensions: 26.75"(H) x 8.25"(W) x 11.5"(D)
• Weight: 45.2 lbs (20.5 kg)
• Grind Adjustment: Stepless micrometrical
• Hopper Capacity: 3.5 lbs (1.6 kg)
• Dosing: Programmable single, double and triple, to 0.01 second
• Burr Type: 83 mm Flat
• Burr Material: Steel
• Burr Speed: 1400 RPM (50 Hz), 1600 RPM (60 Hz)
• Body Material: Aluminum die cast
• Cooling: Electronically controlled ventilation
• Volts: 120
• Watts: 650
• Grind Time: 4.7 seconds per 17 g
• Certifications: ETL Sanitation Listed (NSF-8), ETL Listed (UL-763)
• Country of Origin: Italy

Is the Mazzer Major V Electronic a commercial or a home grinder?

The Mazzer Major V Electronic is a commercial grinder. It draws 650 watts, weighs 45.2 pounds, and is ETL listed to commercial sanitation and safety standards.

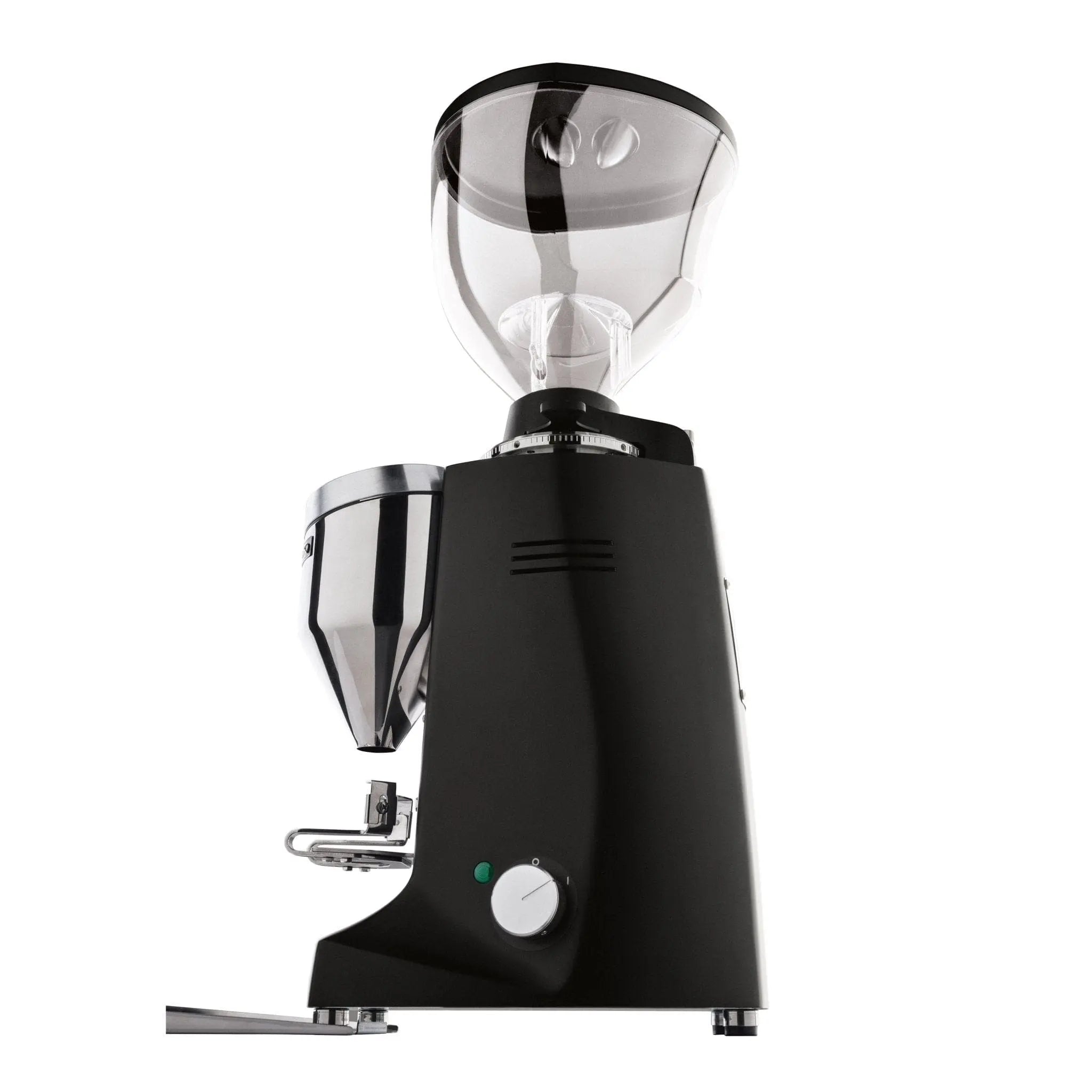

How does the Mazzer Major V Electronic differ from the Major V doser?

The Mazzer Major V Electronic grinds on demand into the portafilter to a programmed time, and reports dose counts, statistics and service alerts on a display. The Major V doser grinds into a chamber and dispenses a mechanically set dose on a lever. The Electronic also has electronically controlled ventilation, which the doser version does not. Both use the same 83 mm flat burrs, the same 650 watt motor, and weigh the same.

How does the Mazzer Major V Electronic differ from the Kony S and Robur S?

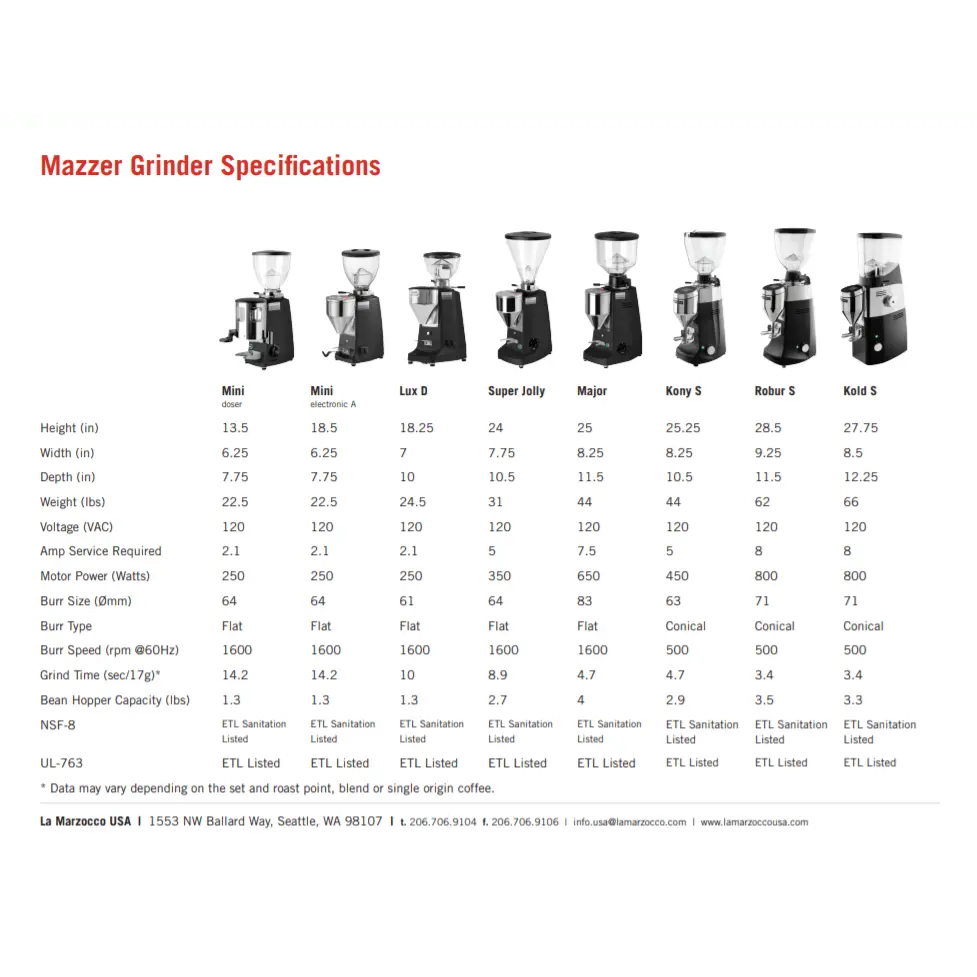

The Mazzer Major V Electronic uses 83 mm flat burrs. The Kony S uses 63 mm conical burrs and the Robur S uses 71 mm conical burrs, both turning more slowly to keep grinding temperatures down. Flat burrs are often preferred for clarity in the cup; conical burrs suit very high continuous volume.

What size are the burrs in the Mazzer Major V Electronic, and what do I order to replace them?

The Mazzer Major V Electronic uses 83 mm flat steel burrs. Single phase machines take distributor part M28215 and three phase machines take M28216.

How many doses can I program on the Mazzer Major V Electronic?

The Mazzer Major V Electronic has three programmable dose buttons, for single, double and triple, each set to a hundredth of a second. A manual grinding mode runs alongside them, and you can set a maximum dose cap.

How much coffee can the Mazzer Major V Electronic grind?

The Mazzer Major V Electronic grinds a 17 gram dose in 4.7 seconds, supporting sustained output above 60 doses an hour.

Does the Mazzer Major V Electronic have a cooling fan?

Yes. The Mazzer Major V Electronic has electronically controlled ventilation, which is one of the differences between it and the Major V doser version.

Does the Mazzer Major V Electronic grind by weight?

No. The Mazzer Major V Electronic doses by time, programmed to a hundredth of a second, not by a scale under the portafilter. For grind by weight, look at the Kony Sg or the Mini G.

How tall is the Mazzer Major V Electronic, and will it fit under a kitchen cabinet?

The Mazzer Major V Electronic is 26.75 inches tall, and you need clearance above that to lift the hopper lid. Standard upper cabinets sit roughly 18 inches above a counter, so it will not fit underneath one.

Is the Mazzer Major V Electronic single dose or hopper fed?

The Mazzer Major V Electronic is hopper fed, with a 3.5 pound hopper.

Will the Mazzer Major V Electronic work with my portafilter?

The Mazzer Major V Electronic has an adjustable portafilter holder fork, so it accommodates a range of commercial portafilter sizes and grinds directly into the basket.

When should the burrs in the Mazzer Major V Electronic be replaced?

The Mazzer Major V Electronic tells you. It carries a worn burr alert on the control panel. Independent of that, watch for grind time creeping up at the same setting and for more fines or clumping. Mazzer does not publish a service life tonnage for this burr set.

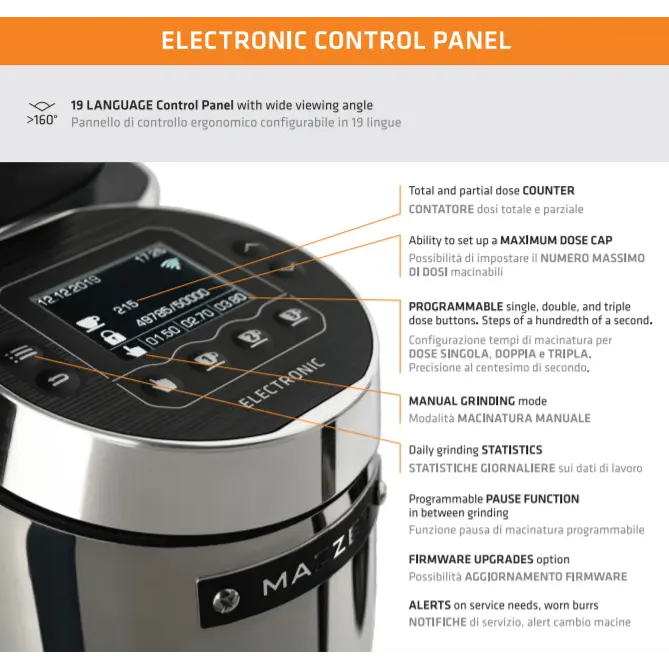

What does the display on the Mazzer Major V Electronic show?

The Mazzer Major V Electronic control panel reads in 19 languages across a viewing angle above 160 degrees. It shows total and partial dose counters, daily grinding statistics, programmed dose times, and alerts for service needs and worn burrs. Firmware can be upgraded.

What power does the Mazzer Major V Electronic need?

The Mazzer Major V Electronic runs on 120 volt single phase power and draws 650 watts. The distributor recommends 7.5 amp service.

How loud is the Mazzer Major V Electronic?

Mazzer publishes no decibel rating for the Major V Electronic, so we will not quote one.

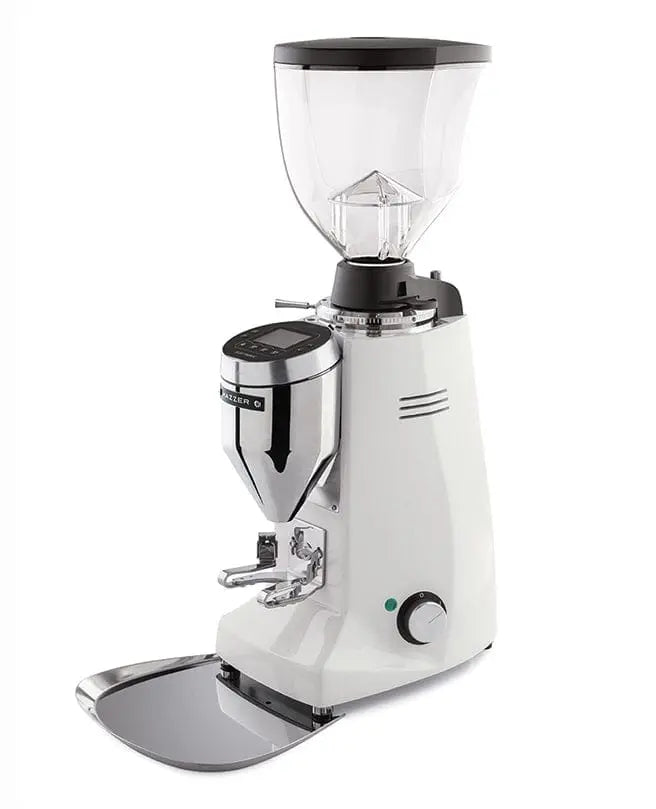

What colours does the Mazzer Major V Electronic come in?

The Mazzer Major V Electronic is available in Deep Black and Arctic White.

Is the Mazzer Major V Electronic NSF certified?

The Mazzer Major V Electronic is ETL Sanitation Listed to NSF-8 and ETL Listed to UL-763.

Where is the Mazzer Major V Electronic made?

The Mazzer Major V Electronic is made by Mazzer in Venice, Italy.

What warranty comes with the Mazzer Major V Electronic?

The Mazzer Major V Electronic includes a 12 month parts warranty.

All new Mazzer grinders include a 12 month parts warranty.
